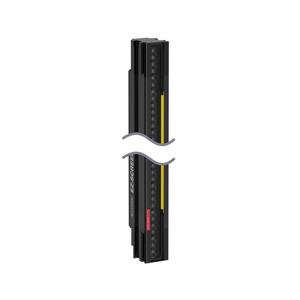

Banner SLLCR14-420-S Safety Light Curtain
The Banner SLLCR14-420-S Safety Light Curtain offers a Type 4 safety level, 0.1 - 12 m operating distance, 420 mm, 102 mA Typical supply current, and Removable Disconnect connection. Manufactured by Banner under the Banner Safety Light Curtain category, this model belongs to the LS Basic Series.
| Brand | Banner |
| Product Type | Safety Light Curtain |
| Model Number | SLLCR14-420-S |
Banner SLLCR14-420-S Safety Light Curtain β Technical Specifications
| Specification | Value |
|---|---|
| IP Rating | IP65, IP67 |
| Primary Housing Material | Aluminum |
| Connector Type | Removable Disconnect |
| Defined Area Height Range (mm) | >350 - <=650 |
| Max Operating Range (m) | >8 - <=20 |
| Safety Level | Type 4 |
| Effective Aperture Angle | Type 4 Per IEC 61496-2 |
| Defined Area Height (mm) | 420 |
| Dimensions WxD (mm) | 36 x 45 |
| Overall Length (mm) | 425 |
| External Monitoring Device | 1 Channel |
| Fixed Blanking | Yes |
| Housing Finish | Black Anodized |
| Operating Distance (m) | 0.1 - 12 |
| Operating Voltage | 24 V dc +/- 15% |
| Operating Temperature | -20 to +55 deg. C; RH 95% |
| PL Rating | Ple |
| Recovery Time | 63 / 211 |
| Resolution (mm) | 14 |
| Reduced Resolution | No |
| SIL Rating | SIL3; CL3 |
| Electrical Safety Class | III |
| Scan Code | Selectable |
| Shock | 10g at 16ms (6000 cycles) |
| Short Protection | Yes |
| System Type | Receiver |
| Vibration | 10-55 Hz at 0.35 mm |
| Auxiliary Output | No |
| Fault Output | Yes |
| Housing Material | Aluminum; Zinc; Acrylic |
| OSSD Rating | 24 V dc at 0.5 A each |
| Supply Current | 102 mA Typical |
| Trip/Latch Output | Trip |
| Test Input | No |
| Feature: Cascade | Yes |
| Feature: End-to-End Sensing | Yes |
