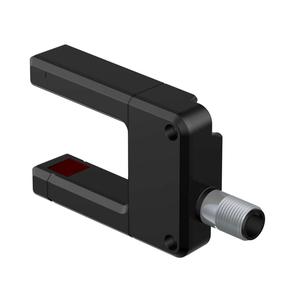

Bannerengineering SL10VB6VYQ SL10 & SL30 Series Slot Sensors
Technical Specifications of Banner SL10 & SL30 Series Slot Sensors SL10VB6VYQ:
| Quick Disconnect Type | M12 |
| Max Sensing Range (mm) | 10 |
| Power Supply/Supply Voltage | 10-30 V dc |
| NEMA / UL Type Rating | NEMA 4X |
Bannerengineering SL10 & SL30 Series Slot Sensors SL10VB6VYQ Technical Specifications
| Specification | Value |
|---|---|
| IP Rating | IP67 |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Sensing Mode (Detailed) | Emitter/Receiver Pair |
| Primary Housing Material | Thermoplastic |
| NEMA / UL Type Rating | NEMA 4X |
| Adjustments | Potentiometer |
| Outputs | Bipolar (NPN & PNP) |
| Special Feature: Remote Teach | No |
| Max Sensing Range (mm) | 10 |
| Power Supply/Supply Voltage | 10-30 V dc |
| Number of Pins | 5 |
| Indicator | LEDs |
| Operation | Light/Dark Operate |
| Output response time (ms) | 0.3 |
| Repeatability (µs) | 75 |
| Lens Material | Acrylic |
| Max Op. Temperature (°C) | 70 |
| Min Op. Temperature (°C) | -40 |
| Max Op. Relative Humidity (%) | 90% @ 50°C |
| Feature: Quick Disconnect | Yes |
| Housing Style | Slot |
| Slot Depth/Array Length (mm) | 45 |
| Slot Overall Depth (mm) | 72 |
| Minimum Object Detection [mm] | 2 |
| Minimum Object Detection (mm) | 2 |
