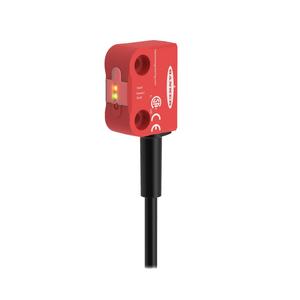

Banner SI-RFDL-LP8 Safety Switch
The Banner SI-RFDL-LP8 Safety Switch offers RFID - Sensor, type, M12 Pigtail connection type. Manufactured by Banner under the Banner Safety Switch category, this model belongs to the SI Series.
| Device Type | RFID - Sensor |
| Operating Voltage | 24 V dc +25%, -20% |
| Connection Type | M12 Pigtail |
Banner SI-RFDL-LP8 Safety Switch – Technical Specifications
| Specification | Value |
|---|---|
| Device Type | RFID - Sensor |
| IP Rating | IP69 |
| Primary Housing Material | Thermoplastic |
| Connection | Pigtail QD |
| Number of Pins | 8 |
| Min Op. Temperature (°C) | -25 |
| Max Op. Temperature (°C) | 70 |
| Feature: Quick Disconnect | Yes |
| Operating Voltage | 24 V dc +25%, -20% |
| PL Rating | PL e |
| SIL Rating | SIL CL 3 |
| OSSD Rating | 24 VDC @ 0.1 A each |
| Actuation | Standard |
| Output Type | OSSD |
| Feature: Cascade | Yes |
| Connection Type | M12 Pigtail |
| In-Series Diagnostics | Yes |
| Relative Humidity | 93% @ 50 °C |
| Switch Style | Non-Contact |
| Device Shape | Rectangular |
| Safety Category | Cat 4 |
| SISTEMA | PFHd of 1 x 10-9 |
| Actuator (Safety) Contacts | 2 NC |
| Rated Operating Current | 50 mA + output loads |
| Coding Level/Tamper Resistance | Low |
| Auxilliary Output | No |
| Response Time (ms) | 100 |
| Device Size | 36 x 26 x 15 |
| Sar Maximum (mm) | 25 |
| H Typical (mm) | Latch |
| Sn Typical | 13 |
| Sao Minimum (mm) | 10 |
| Trip Latch Output | Latch |
| ISD Connect Compatible | Yes |
