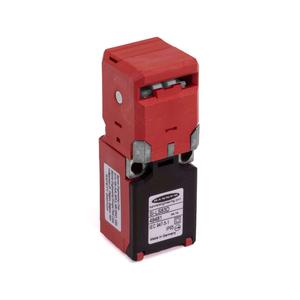

Banner SI-LS83E Safety Switch
The Banner SI-LS83E Safety Switch offers Mechanical - Sensor, type, Wiring Chamber connection type. Manufactured by Banner under the Banner Safety Switch category, this model belongs to the SI Series.
| Device Type | Mechanical - Sensor |
| Connection Type | Wiring Chamber |
Banner SI-LS83E Safety Switch β Technical Specifications
| Specification | Value |
|---|---|
| Device Type | Mechanical - Sensor |
| IP Rating | IP65 |
| Primary Housing Material | Thermoplastic |
| Min Op. Temperature (Β°C) | -30 |
| Max Op. Temperature (Β°C) | 80 |
| PL Rating | PL e |
| SIL Rating | SIL CL 3 |
| Output Type | Contacts |
| Connection Type | Wiring Chamber |
| In-Series Diagnostics | No |
| Switch Style | Contact |
| Device Shape | Rectangular |
| Safety Category | Cat 4 |
| SISTEMA | B10d = 2 million |
| Actuator (Safety) Contacts | 2 NC |
| Coding Level/Tamper Resistance | Low |
| Mechanical Life (operations in millions) | 1 |
| Auxilliary Output | No |
| Device Size | 83 x 30 x 31 |
