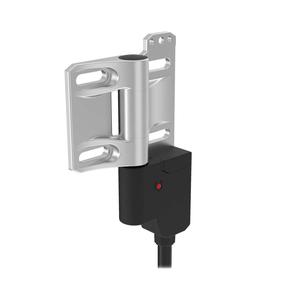

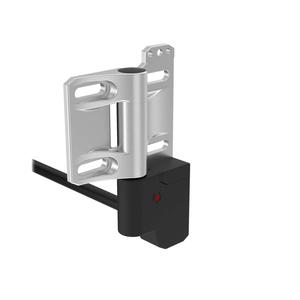

Banner SI-HG63F5MLR-W Safety Switch
The Banner SI-HG63F5MLR-W Safety Switch offers Hinge, type, Cabled connection type. Manufactured by Banner under the Banner Safety Switch category, this model belongs to the SI Series.
| Device Type | Hinge |
| Connection Type | Cabled |
Banner SI-HG63F5MLR-W Safety Switch – Technical Specifications
| Specification | Value |
|---|---|
| Device Type | Hinge |
| IP Rating | IP69 |
| Primary Housing Material | Stainless Steel/Thermoplastic |
| Number of Pins | 6 |
| Min Op. Temperature (°C) | -25 |
| Max Op. Temperature (°C) | 70 |
| PL Rating | PL e |
| SIL Rating | SIL CL 3 |
| Output Type | Contacts |
| Connection Type | Cabled |
| In-Series Diagnostics | No |
| Switch Style | Contact |
| Device Shape | Hinge |
| Safety Category | Cat 4 |
| SISTEMA | B10d = 2 million |
| Actuator (Safety) Contacts | 2 NC/1 NO |
| Coding Level/Tamper Resistance | Uncoded |
| Mechanical Life (operations in millions) | 1 |
| Auxilliary Output | No |
| Device Size | 128 x 82 x 20 |
| Switch Point Positioning | Re-Positionable |
