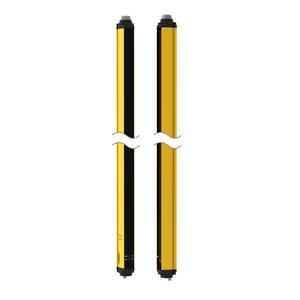

Banner SGSSP4-300Q88 Safety Light Curtain

The Banner SGSSP4-300Q88 safety grid system uses 4 beams with 900 mm protective height for perimeter guarding applications safety. This emitter and receiver pair operates on 24 V DC, supports 0.5–30 m sensing range, provides OSSD solid-state outputs, delivers 14 ms response time, uses an 8-pin M12 connector, meets IP65 protection, and is manufactured by Banner. It belongs to the Banner Safety Light Curtain category within the Safety Grid System series for industrial automation safety.

Banner SGSSP4-300Q88
Datasheet
BrandBanner
Product TypeSafety Light Curtain
Model NumberSGSSP4-300Q88

Banner SGSSP4-300Q88 Safety Light Curtain – Technical Specifications

SpecificationValue
TypeSGS Safety Grid System
IP RatingIP65
Primary Housing MaterialAluminum
Connector TypeM12
Defined Area Height Range (mm)>650 - <=950
Max Operating Range (m)>20
Safety LevelType 4
Effective Aperture AngleType 4 Per IEC 61496-2
Defined Area Height (mm)900
Dimensions WxD (mm)52 x 56.9
Overall Length (mm)1006.35
External Monitoring Device1 Channel
Housing FinishYellow Polyester
Number of Pins (Receiver/Emitter)8,8
Operating Distance (m)0.5 - 30
Operating Voltage24 V dc +/- 20%
Operating Temperature0 to +55 deg. C; RH 95%
PL RatingPle
Resolution (mm)4 - 300
Reduced ResolutionNo
Response Time14
SIL RatingSIL3; CL3
Electrical Safety ClassIII
Shock10g at 16ms (6000 cycles)
System TypeEmitter/Receiver Pair
Vibration10-55 Hz at 0.35 mm
Housing MaterialAluminum; PMMA
OSSD Rating24 V dc at 0.5 A each
Supply Current500 mA
