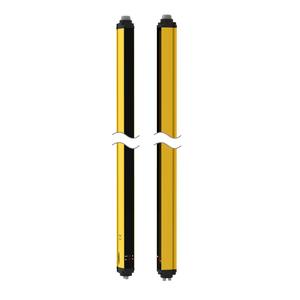

Banner SGSMP2-500Q128 Safety Light Curtain
The Banner SGSMP2-500Q128 Safety Light Curtain offers a Type 4 safety level, >20 m operating range, 500 mm height, and M12 connection. Manufactured by Banner under the Banner Safety Light Curtain category, this model belongs to the SGS Series.
| Brand | Banner |
| Product Type | Safety Light Curtain |
| Model Number | SGSMP2-500Q128 |
Banner SGSMP2-500Q128 Safety Light Curtain – Technical Specifications
| Specification | Value |
|---|---|
| Type | SGS Safety Grid System |
| IP Rating | IP65 |
| Primary Housing Material | Aluminum |
| Connector Type | M12 |
| Defined Area Height Range (mm) | >350 - <=650 |
| Max Operating Range (m) | >20 |
| Safety Level | Type 4 |
| Effective Aperture Angle | Type 4 Per IEC 61496-2 |
| Defined Area Height (mm) | 500 |
| Dimensions WxD (mm) | 52 x 56.9 |
| Overall Length (mm) | 606.35 |
| External Monitoring Device | 1 Channel |
| Housing Finish | Yellow Polyester |
| Number of Pins (Receiver/Emitter) | 12,8 |
| Operating Distance (m) | 0.5 - 30 |
| Operating Voltage | 24 V dc +/- 20% |
| Operating Temperature | 0 to +55 deg. C; RH 95% |
| PL Rating | Ple |
| Resolution (mm) | 2 - 500 |
| Reduced Resolution | No |
| Response Time | 12 |
| SIL Rating | SIL3; CL3 |
| Electrical Safety Class | III |
| Shock | 10g at 16ms (6000 cycles) |
| System Type | Emitter/Receiver Pair |
| Vibration | 10-55 Hz at 0.35 mm |
| Housing Material | Aluminum; PMMA |
| OSSD Rating | 24 V dc at 0.5 A each |
| Supply Current | 500 mA |
