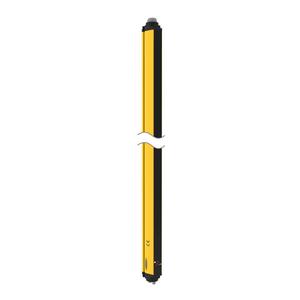

Home Brands Banner Safety Light Curtain SGSMA4-400Q12 Banner SGSMA4-400Q12 Safety Light Curtain The Banner SGSMA4-400Q12 Safety Light Curtain offers a Type 4 safety level, >4 - <=8 m operating range, 1200 mm height, and M12 connection. Manufactured by Banner under the Banner Safety Light Curtain category, this model belongs to the SGS Series.
Brand Banner Product Type Safety Light Curtain Model Number SGSMA4-400Q12
Banner SGSMA4-400Q12 Safety Light Curtain β Technical Specifications Specification Value Type SGS Safety Grid System IP Rating IP65 Primary Housing Material Aluminum Connector Type M12 Defined Area Height Range (mm) >950 - <=1300 Max Operating Range (m) >4 - <=8 Safety Level Type 4 Effective Aperture Angle Type 4 Per IEC 61496-2 Defined Area Height (mm) 1200 Dimensions WxD (mm) 52 x 56.9 Overall Length (mm) 1306.35 External Monitoring Device 1 Channel Housing Finish Yellow Polyester Number of Pins (Receiver/Emitter) 12 Operating Distance (m) 0.5 - 8 Operating Voltage 24 V dc +/- 20% Operating Temperature 0 to +55 deg. C; RH 95% PL Rating Ple Resolution (mm) 4 - 400 Reduced Resolution No Response Time 12 SIL Rating SIL3; CL3 Electrical Safety Class III Shock 10g at 16ms (6000 cycles) System Type Transceiver - Active Vibration 10-55 Hz at 0.35 mm Housing Material Aluminum; PMMA OSSD Rating 24 V dc at 0.5 A each Supply Current 500 mA
