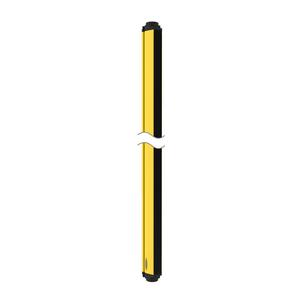

Banner SGSB4-300 Safety Light Curtain
The Banner SGSB4-300 Safety Light Curtain offers a Type 4 safety level, >4 - <=8 m operating range, 900 mm height, and M12 connection. Manufactured by Banner under the Banner Safety Light Curtain category, this model belongs to the SGS Series.
| Max Operating Range (m) | >4 - <=8 |
| Safety Level | Type 4 |
| Resolution (mm) | 4 - 300 |
Banner SGSB4-300 Safety Light Curtain – Technical Specifications
| Specification | Value |
|---|---|
| Type | SGS Safety Grid System |
| IP Rating | IP65 |
| Primary Housing Material | Aluminum |
| Connector Type | M12 |
| Defined Area Height Range (mm) | >650 - <=950 |
| Max Operating Range (m) | >4 - <=8 |
| Safety Level | Type 4 |
| Effective Aperture Angle | Type 4 Per IEC 61496-2 |
| Defined Area Height (mm) | 900 |
| Dimensions WxD (mm) | 52 x 56.9 |
| Overall Length (mm) | 980.5 |
| Fixed Blanking | No |
| Housing Finish | Yellow Polyester |
| Operating Distance (m) | 0.5 - 6.5 |
| Operating Temperature | 0 to +55 deg. C; RH 95% |
| PL Rating | Ple |
| Resolution (mm) | 4 - 300 |
| Reduced Resolution | No |
| Response Time | 27 |
| SIL Rating | SIL3; CL3 |
| Electrical Safety Class | III |
| Shock | 10g at 16ms (6000 cycles) |
| System Type | Mirror Assembly - Passive |
| Vibration | 10-55 Hz at 0.35 mm |
| Auxiliary Output | No |
| Fault Output | No |
| Housing Material | Aluminum; PMMA |
| Test Input | No |
| Feature: Integral Muting | Yes |
