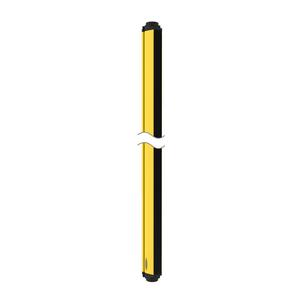

Home Brands Banner Safety Light Curtain SGSB3-400 Banner SGSB3-400 Safety Light Curtain The Banner SGSB3-400 Safety Light Curtain offers a Type 4 safety level, >4 - <=8 m operating range, 800 mm height, and M12 connection. Manufactured by Banner under the Banner Safety Light Curtain category, this model belongs to the SGS Series.
Brand Banner Product Type Safety Light Curtain Model Number SGSB3-400
Banner SGSB3-400 Safety Light Curtain β Technical Specifications Specification Value Type SGS Safety Grid System IP Rating IP65 Primary Housing Material Aluminum Connector Type M12 Defined Area Height Range (mm) >650 - <=950 Max Operating Range (m) >4 - <=8 Safety Level Type 4 Effective Aperture Angle Type 4 Per IEC 61496-2 Defined Area Height (mm) 800 Dimensions WxD (mm) 52 x 56.9 Overall Length (mm) 880.5 Housing Finish Yellow Polyester Operating Distance (m) 0.5 - 8 Operating Temperature 0 to +55 deg. C; RH 95% PL Rating Ple Resolution (mm) 3 - 400 Reduced Resolution No Response Time 13 SIL Rating SIL3; CL3 Electrical Safety Class III Shock 10g at 16ms (6000 cycles) System Type Mirror Assembly - Passive Vibration 10-55 Hz at 0.35 mm Housing Material Aluminum; PMMA
