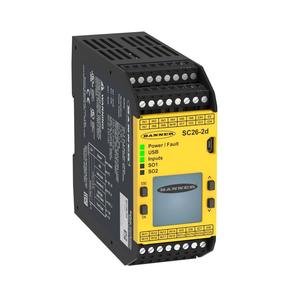

Banner SC26-2D Safety Relay
The Banner SC26-2D Safety Relay offers 3, rating, Screw terminal type. Manufactured by Banner under the Banner Safety Relay category, this model belongs to the ATK Series.
| Brands | Banner |
| Product Type | Safety Controllers and Safety Relays |
| Model Number | SC26-2D |
Banner SC26-2D Safety Relay β Technical Specifications
| Specification | Value |
|---|---|
| Type | SC26 Series Safety Controllers |
| Device Type | Safety Controller |
| IP Rating | IP20 |
| Power | DC |
| Supply Voltage | 24 V dc +/- 20% |
| Recovery Time | 250 (typical), 400 (max) |
| PL Rating | e |
| SIL Rating | 3 |
| Relative Humidity | 90% @ 50Β° C |
| Dimension (H x W x D in mm) | 110 x 45 x 129 |
| Number of Safe Inputs | 26 |
| Input Configuration | Configurable |
| Output Configuration | 2 OSSD Pairs |
| Non Safe Output Rating | 80 mA @ 24 V dc (individual) max for IOx; overcurrent protected, 500 mA @ 24 V dc for Sox |
| Safe Output Rating | OSSD 0.50 A max. @ 24 V dc |
| Power Consumption | 0.12 A (controller only) |
| Response Time (ms) | See Software Configuration Summary |
| Terminal Type | Screw |
| Removable Terminals | Yes |
| Safety Category Rating | 4 |
| Max Operating Temperature ( Β°C) | 55 |
