Bannerengineering S22L2SRGB7T LED Indicators

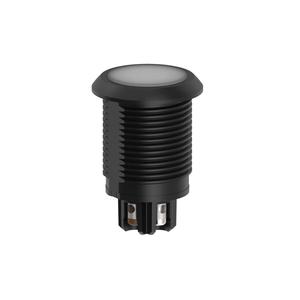

Banner S22L2SRGB7T LED Indicators
| Brand | Banner |
| Product Type | LED Indicator |
| Model Number | S22L2SRGB7T |
Bannerengineering LED Indicators S22L2SRGB7T Technical Specifications
| Specification | Value |
|---|
| Type | S22 Pro Series 22 mm Programmable Multicolor Panel Indicator |
| Housing Style | Barrel Mount - Flat Window |
| IP Rating | IP66, IP67, IP69K |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Terminal |
| Mounting Thread | M22 x 1.5 |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Number of Colors | 7 |
| Product Size (mm) | 22 |
| Color Technology | RGB Configurable |
| Color Option 1 | Red |
| Max Current Color (mA) | 70 |
| Supply Voltage | 10-30 V dc |
| Input Type | Bimodal (PNP/NPN) |
| Max Input Response Time (ms) | 250 |
| Physical Dimensions (LxWxH or DxH mm) | 27.3 x 39.1 |
| Environmental Rating | IP66; IP67; IP69K |
| High Temperature (up to 100Β° C) | 50 |
| Min Op. Temperature (Β°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Single Color On |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50Β°C |
| Storage Temp (Β°C) | -40 to 70 |
