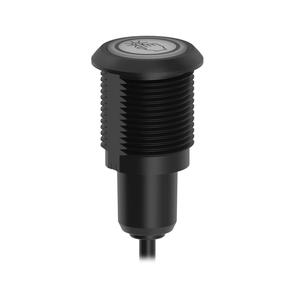

Banner S22AMTSGRHQP Touch Button

Name: Bannerengineering S22AMTSGRHQP
Brand: IndMALL
SKU: dc8f166fbe17
Rating: 4.5 (4 reviews)

The Banner S22AMTSGRHQP Touch Button offers a Barrel Mount - Flat Window housing style, Pigtail QD Connection, Normally Open operation, and IP66, IP67, IP69K rating. Manufactured by Banner under the Banner Touch Button category, this model belongs to the K30 Series.

Datasheet

Connection	Pigtail QD
Color Technology	RGB Configurable
Supply Voltage	10-30 V dc

Banner S22AMTSGRHQP Touch Button - Technical Specifications

Specification	Value
Type	S22 Pro Series 22 mm Programmable Multicolor Touch Button
Housing Style	Barrel Mount - Flat Window
IP Rating	IP66, IP67, IP69K
Cable Length (m)	0.15
Power	DC
Primary Housing Material	Polycarbonate
Connection	Pigtail QD
Operation	Normally Open
Feature: Audible	No
Display	No
Mounting Thread	M22 x 1.5
Color Input Control	Individual (One wire/color, same number of colors as input wires)
Number of Colors	2
Product Size (mm)	22
Color Technology	RGB Configurable
Color Option 1	Green
Quick Disconnect Type	M12
Color Option 2	Red
Max Current Color (mA)	80
Number of Input Pins/Conductors	5
Supply Voltage	10-30 V dc
Input Type	Bimodal (PNP/NPN)
Max Input Response Time (ms)	20
Physical Dimensions (LxWxH or DxH mm)	27.3 x 47.8
Environmental Rating	IP66; IP67; IP69K
High Temperature (up to 100° C)	50
Min Op. Temperature (°C)	-40
Primary Housing Color	Black
Primary Window Material	Polycarbonate Diffused
Multi-Color Device	Single Color On
Max Op. Relative Humidity Non-Condensing (%)	90% @ 50°C
Storage Temp (°C)	-40 to 70
Activation Function	Capacitive Touch
Acknowledge (Sense) Light	Red
Pick-to-Light Function	H
Output Type	Bipolar (NPN & PNP)
Max Output Response Time (ms)	300
Button Operation	Momentary
Job Light	Green
Lumens Color 1	0.18
Color 1 - Wavelength/Color Temp/Coordinates	527 nm
Lumens Color 2	0.08
Color 2 - Wavelength/Color Temp/Coordinates	625 nm
