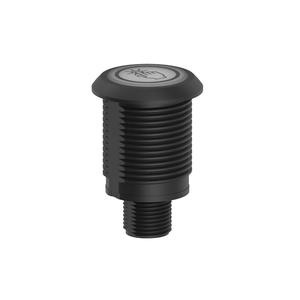

Home Brands Banner Touch Button S22AMTSGRHQ Banner S22AMTSGRHQ Touch Button The Banner S22AMTSGRHQ Touch Button offers a Barrel Mount - Flat Window housing style, Integral QD Connection, Normally Open operation, and IP66, IP67, IP69K rating. Manufactured by Banner under the Banner Touch Button category, this model belongs to the K30 Series.
Brand Banner Product Type Tower Button Model Number S22AMTSGRHQ
Banner S22AMTSGRHQ Touch Button - Technical Specifications Specification Value Type S22 Pro Series 22 mm Programmable Multicolor Touch Button Housing Style Barrel Mount - Flat Window IP Rating IP66, IP67, IP69K Power DC Primary Housing Material Polycarbonate Connection Integral QD Operation Normally Open Mounting Thread M22 x 1.5 Color Input Control Individual (One wire/color, same number of colors as input wires) Number of Colors 2 Product Size (mm) 22 Color Technology RGB Configurable Color Option 1 Green Quick Disconnect Type M12 Max Current Color (mA) 80 Number of Input Pins/Conductors 5 Supply Voltage 10-30 V dc Input Type Bimodal (PNP/NPN) Max Input Response Time (ms) 20 Physical Dimensions (LxWxH or DxH mm) 27.3 x 40.2 Environmental Rating IP66; IP67; IP69K High Temperature (up to 100Β° C) 50 Min Op. Temperature (Β°C) -40 Primary Housing Color Black Primary Window Material Polycarbonate Diffused Multi-Color Device Single Color On Output Type Bipolar (NPN & PNP) Max Output Response Time (ms) 300
