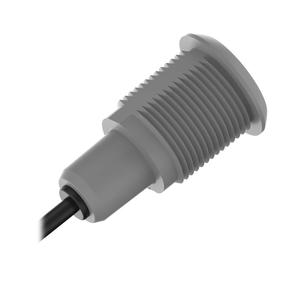

Banner S22AMTFGRY3QP Touch Button
The Banner S22AMTFGRY3QP Touch Button offers a Barrel Mount - Flat Window housing style, Pigtail QD Connection, Normally Open operation, and IP66, IP67, IP69K rating. Manufactured by Banner under the Banner Touch Button category, this model belongs to the K30 Series.
| Connection | Pigtail QD |
| Color Technology | RGB Configurable |
| Supply Voltage | 10-30 V dc |
Banner S22AMTFGRY3QP Touch Button - Technical Specifications
| Specification | Value |
|---|---|
| Type | S22 Pro Series 22 mm Programmable Multicolor Touch Button |
| Housing Style | Barrel Mount - Flat Window |
| IP Rating | IP66, IP67, IP69K |
| Power | DC |
| Primary Housing Material | FDA Copolyester |
| Connection | Pigtail QD |
| Operation | Normally Open |
| Feature: Audible | No |
| Display | No |
| Mounting Thread | M22 x 1.5 |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Number of Colors | 3 |
| Product Size (mm) | 22 |
| Color Technology | RGB Configurable |
| Color Option 1 | Green |
| Quick Disconnect Type | M12 |
| Color Option 2 | Red |
| Color Option 3 | Yellow |
| Max Current Color (mA) | 80 |
| Number of Input Pins/Conductors | 5 |
| Supply Voltage | 10-30 V dc |
| Input Type | Bimodal (PNP/NPN) |
| Max Input Response Time (ms) | 20 |
| Physical Dimensions (LxWxH or DxH mm) | 27.3 x 39.1 |
| Environmental Rating | IP66; IP67; IP69K |
| High Temperature (up to 100Β° C) | 50 |
| Min Op. Temperature (Β°C) | -40 |
| Primary Housing Color | FDA Gray |
| Primary Window Material | Copolyester Diffused |
| Multi-Color Device | Single Color On |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50Β°C |
| Storage Temp (Β°C) | -40 to 70 |
| Activation Function | Capacitive Touch |
| Pick-to-Light Function | F2 |
| Output Type | Bipolar (NPN & PNP) |
| Max Output Response Time (ms) | 300 |
| Button Operation | Momentary |
| Lumens Color 1 | 0.18 |
| Color 1 - Wavelength/Color Temp/Coordinates | 527 nm |
| Lumens Color 2 | 0.08 |
| Color 2 - Wavelength/Color Temp/Coordinates | 625 nm |
| Lumens Color 3 | 0.25 |
| Color 3 - Wavelength/Color Temp/Coordinates | 572 nm |
