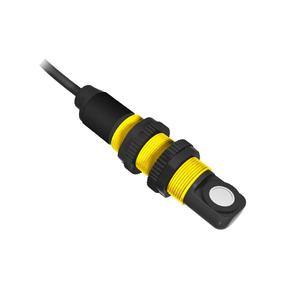

Banner S18UUAR Ultrasonic Sensor
The Banner S18UUAR Ultrasonic Sensor offers a Barrel - Right Angle housing style, 300 sensing distance, 12-30 V dc power supply, and Flying Leads connection. Manufactured by Banner under the Banner Ultrasonic Sensor category, this model belongs to the M18/Q45 Series.
| Sensing Mode (Detailed) | Time of Flight |
| Max Sensing Distance (mm) | 300 |
| Power Supply | 12-30 V dc |
Bannerengineering Ultrasonic Sensor S18UUAR Technical Specifications
| Specification | Value |
|---|---|
| Type | S18U Series Barrel Ultrasonic Sensor |
| Sensing Beam | Ultrasonic |
| Power | DC |
| NEMA / UL Type Rating | NEMA 4X |
| IP Rating | IP67 |
| Sensing Mode (General) | Proximity |
| Sensing Mode (Detailed) | Time of Flight |
| Housing Style | Barrel - Right Angle |
| Device Type | Sensor |
| Primary Housing Material | ABS/Polycarbonate |
| Input Output | Analog |
| Connection | Flying Leads |
| Max Sensing Distance (mm) | 300 |
| Minimum Sensing Distance (mm) | 30 |
| Power Supply | 12-30 V dc |
| Adjustments | Push Button; Remote Teach |
| Number of Pins | 5 |
| Discrete (Switched) Outputs | Bipolar (NPN & PNP) |
| Max Operating Temperature (°C) | 60 |
| Min Operating Temperature (°C) | -20 |
| Minimum Response Time (ms) | 2.5 |
| Barrel Thread | M18 |
| Ultrasonic Frequency (kHz) | 300 |
| Feature: Remote Teach | Yes |
| Feature: Clear Object Detection | Yes |
| Application: Ultrasonic | Yes |
| Cable Length (m) | 2 |
| Analog Output Configuration | 0-10 V dc |
