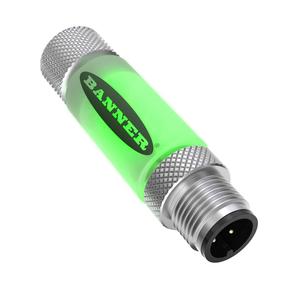

Banner S15LGRPQ Lighting and Indication
The Banner S15LGRPQ Lighting and Indication offers a Barrel - Straight style, PNP input type, 10-30 V dc supply voltage, and Integral QD connection. Manufactured by Banner under the Banner Lighting and Indication category, this model belongs to the Andon lights.
| Brand | Banner |
| Product Type | Lighting and Indication |
| Model Number | S15LGRPQ |
Banner S15LGRPQ Lighting and Indication – Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Barrel - Straight |
| IP Rating | IP66, IP67 |
| Power | DC |
| Primary Housing Material | PUR |
| Connection | Integral QD |
| Feature: Audible | No |
| Display | No |
| Indication | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 2 |
| Product Size (mm) | 15 |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Color Option 2 | Red |
| Animation Option 2 | Solid On |
| Max Current Color (mA) | 15 |
| Number of Input Pins/Conductors | 4 |
| Supply Voltage | 10-30 V dc |
| Input Type | PNP |
| Physical Dimensions (LxWxH or DxH mm) | 15.0 X 58.0 |
| Environmental Rating | IP66; IP67 |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -40 |
| Multi-Color Device | Single Color On |
| Feature: Quick Disconnect | Yes |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| Storage Temp (°C) | -40 to 70 |
| I/O Block Compatible | Yes |
| Feature: Cascade | Yes |
| Color 1 - Wavelength/Color Temp/Coordinates | 525 nm |
| Color 2 - Wavelength/Color Temp/Coordinates | 625 nm |
