Bannerengineering S15A-F12343-M1234X-Q Adapters
Technical Specifications of Banner Adapters S15A-F12343-M1234X-Q:
| Output | Pass Through |
| Connector 2 | Integral M12 |
| Input | Pass Through |
| IP Rating | IP65, IP67, IP68 |
Bannerengineering Adapters S15A-F12343-M1234X-Q Technical Specifications
| Specification | Value |
|---|---|
| IP Rating | IP65, IP67, IP68 |
| Connector 1 Gender | Female |
| Connector 2 Gender | Male |
| Output | Pass Through |
| Connector 2 | Integral M12 |
| Device Size (mm) | 15 x 58 |
| Function | Wiring Adapter |
| Form Factor | S15 |
| Connector 1 Pin Count | 5 |
| Connector 2 Pin Count | 5 |
| Input | Pass Through |
| Connector 1 | Integral M12 |

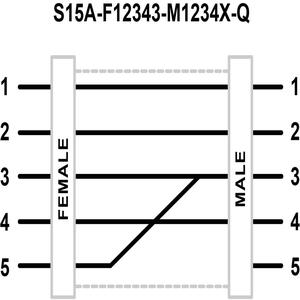

| Female Pin 1 Destination | 1 |
| Female Pin 2 Destination | 2 |
| Female Pin 3 Destination | 3 |
| Female Pin 5 Destination | 3 |
| Female Pin 4 Destination | 4 |
