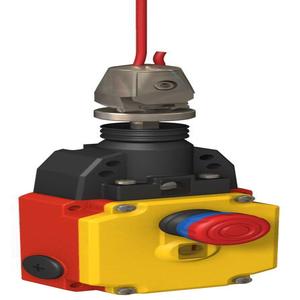

Banner RP-RM83F-38LTE-86236 Safety Switch
The Banner RP-RM83F-38LTE-86236 Safety Switch offers Rope Pull w/E-Stop Button, type, Wiring Chamber connection type. Manufactured by Banner under the Banner Safety Switch category, this model belongs to the SI Series.
| Device Type | Rope Pull w/E-Stop Button |
| Connection Type | Wiring Chamber |
Banner RP-RM83F-38LTE-86236 Safety Switch – Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Limit Switch |
| Device Type | Rope Pull w/E-Stop Button |
| IP Rating | IP67 |
| Primary Housing Material | Aluminum Alloy Die-Cast |
| Armed Color (Solid) | Yellow |
| Button Shroud | No |
| Actuated Color | Red |
| Illumination Type | Light Added |
| Feature: Illuminated | Yes |
| Actuator/Button Material | Zinc Alloy Die-Cast |
| Contact Quantity | 2 NO, 2 NC |
| Contact Rating | 10 A @ 110 V ac; 6 A @ 24 V dc |
| Dimensions (HxWxD mm ) | 282 x 90 x 88 |
| Min Operating Temperature ( °C) | -30 |
| Button Diameter (mm) | 33 |
| Max Operating Temperature ( °C) | 80 |
| Attachment | Turnbuckle |
| Max Cable Length (m) | 37.5 |
| Min Op. Temperature (°C) | -30 |
| Max Op. Temperature (°C) | 80 |
| Button Diameter (mm) | 33 |
| Armed Color (Solid) | Yellow |
| Button Shroud | No |
| Actuated Color | Red |
| Illumination Type | Light Added |
| Feature: Illuminated | Yes |
| Actuator/Button Material | Zinc Alloy Die-Cast |
| Contact Quantity | 2 NO, 2 NC |
| Contact Rating | 10 A @ 110 V ac; 6 A @ 24 V dc |
| Dimensions (HxWxD mm ) | 282 x 90 x 88 |
| Attachment | Turnbuckle |
| Max Cable Length (m) | 37.5 |
| Actuation | Latch |
| Connection Type | Wiring Chamber |
