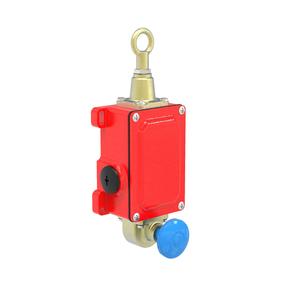

Banner RP-QMT72F-12L Safety Switch
The Banner RP-QMT72F-12L Safety Switch offers Rope Pull, type, Wiring Chamber connection type. Manufactured by Banner under the Banner Safety Switch category, this model belongs to the SI Series.
| Device Type | Rope Pull |
| Connection Type | Wiring Chamber |
Banner RP-QMT72F-12L Safety Switch β Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Limit Switch |
| Device Type | Rope Pull |
| IP Rating | IP65 |
| Primary Housing Material | Aluminum Alloy Die-Cast |
| Button Shroud | No |
| Actuator/Button Material | Zinc Alloy Die-Cast |
| Contact Quantity | 4 NC |
| Contact Rating | 10 A @ 110 V ac; 6 A @ 24 V dc |
| Dimensions (HxWxD mm ) | 182 x 82 x 69 |
| Min Operating Temperature ( Β°C) | -30 |
| Max Operating Temperature ( Β°C) | 80 |
| Attachment | Ring |
| Max Cable Length (m) | 12 |
| Min Op. Temperature (Β°C) | -30 |
| Max Op. Temperature (Β°C) | 80 |
| Button Shroud | No |
| Actuator/Button Material | Zinc Alloy Die-Cast |
| Contact Quantity | 4 NC |
| Contact Rating | 10 A @ 110 V ac; 6 A @ 24 V dc |
| Dimensions (HxWxD mm ) | 182 x 82 x 69 |
| Attachment | Ring |
| Max Cable Length (m) | 12 |
| Actuation | Latch |
| Connection Type | Wiring Chamber |
