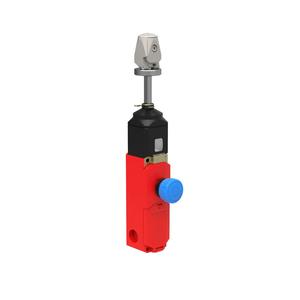

Banner RP-LS42F-75LF Safety Switch
The Banner RP-LS42F-75LF Safety Switch offers Rope Pull w/Reset Button, type, Wiring Chamber connection type. Manufactured by Banner under the Banner Safety Switch category, this model belongs to the SI Series.
| Device Type | Rope Pull w/Reset Button |
| Connection Type | Wiring Chamber |
Banner RP-LS42F-75LF Safety Switch β Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Limit Switch |
| Device Type | Rope Pull w/Reset Button |
| IP Rating | IP67 |
| Primary Housing Material | Thermoplastic |
| Button Shroud | No |
| Actuator/Button Material | Zinc Alloy Die-Cast |
| Contact Quantity | 2 NO, 2 NC |
| Contact Rating | 3 A @ 240 V ac/10 A @ 24 V dc |
| Dimensions (HxWxD mm ) | 317 x 42.5 x 45 |
| Min Operating Temperature ( Β°C) | -25 |
| Max Operating Temperature ( Β°C) | 70 |
| Attachment | Turnbuckle |
| Max Cable Length (m) | 75 |
| Min Op. Temperature (Β°C) | -25 |
| Max Op. Temperature (Β°C) | 70 |
| Button Shroud | No |
| Actuator/Button Material | Zinc Alloy Die-Cast |
| Contact Quantity | 2 NO, 2 NC |
| Contact Rating | 3 A @ 240 V ac/10 A @ 24 V dc |
| Dimensions (HxWxD mm ) | 317 x 42.5 x 45 |
| Attachment | Turnbuckle |
| Max Cable Length (m) | 75 |
| Actuation | Latch |
| Connection Type | Wiring Chamber |
