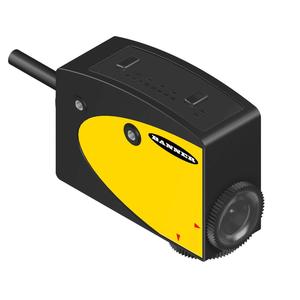

Bannerengineering R58ECRGB1 W/30 Registration Mark, Color and Luminescence Sensors
Technical Specifications of Banner Registration Mark, Color and Luminescence Sensors R58ECRGB1 W/30:
| Connection | Cable |
| Max Sensing Range (mm) | 10 |
| Power Supply/Supply Voltage | 10-30 V dc |
| NEMA / UL Type Rating | NEMA 4X |
Bannerengineering Registration Mark, Color and Luminescence Sensors R58ECRGB1 W/30 Technical Specifications
| Specification | Value |
|---|---|
| Type | R58 Series Registration Mark Sensor |
| IP Rating | IP67 |
| Connection | Cable |
| Primary Housing Material | Zinc Alloy Die-Cast |
| NEMA / UL Type Rating | NEMA 4X |
| Adjustments | Teach Button |
| Sensing Beam | Red/Green/Blue LED |
| Outputs | Bipolar (NPN & PNP) |
| Special Feature: Remote Teach | Yes |
| Sensing Beam Wavelength | Red: 636 nm; Green: 525 nm; Blue: 472 nm |
| Max Sensing Range (mm) | 10 |
| Power Supply/Supply Voltage | 10-30 V dc |
| Number of Pins | 5 |
| LED Orientation | Parallel to sensor length |
| Indicator | Bargraph |
| Operation | Light/Dark Operate |
| Output response time (ms) | 0.05 |
| Repeatability (µs) | 15 |
| Lens Material | Acrylic |
| Max Op. Temperature (°C) | 50 |
| Min Op. Temperature (°C) | -10 |
| Max Op. Relative Humidity (%) | 90% @ 50°C |
| Special Feature: Analog Output | No |
| Delay at Power-up (ms) | 1000 |
| Beam Spot Size | 1.2 x 3.8 mm at 10 mm |
| Feature: Timing (Hold/Delay) | Yes |
| Application: Luminescence | No |
| Application: Registration Mark | Yes |
| Application: Color | No |
| Cable Length (m) | 9 |
