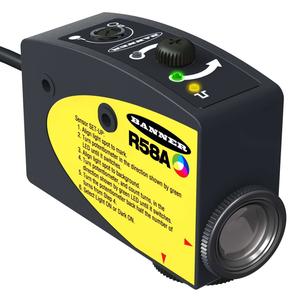

Bannerengineering R58ACR2Q Registration Mark, Color and Luminescence Sensors
Technical Specifications of Banner Registration Mark, Color and Luminescence Sensors R58ACR2Q:
| Connection | Pigtail QD |
| Max Sensing Range (mm) | 10 |
| Power Supply/Supply Voltage | 10-30 V dc |
| NEMA / UL Type Rating | NEMA 4X |
Bannerengineering Registration Mark, Color and Luminescence Sensors R58ACR2Q Technical Specifications
| Specification | Value |
|---|---|
| Type | R58 Series Registration Mark Sensor |
| IP Rating | IP67 |
| Connection | Pigtail QD |
| Quick Disconnect Type | M12 |
| Primary Housing Material | Zinc Alloy Die-Cast |
| NEMA / UL Type Rating | NEMA 4X |
| Adjustments | Potentiometer |
| Sensing Beam | Visible Red LED |
| Outputs | Bipolar (NPN & PNP) |
| Special Feature: Remote Teach | No |
| Sensing Beam Wavelength | 636 |
| Max Sensing Range (mm) | 10 |
| Power Supply/Supply Voltage | 10-30 V dc |
| Number of Pins | 4 |
| LED Orientation | Perpendicular to sensor length |
| Indicator | LEDs |
| Operation | Light/Dark Operate |
| Output response time (ms) | 0.05 |
| Repeatability (µs) | 15 |
| Lens Material | Acrylic |
| Max Op. Temperature (°C) | 50 |
| Min Op. Temperature (°C) | -10 |
| Max Op. Relative Humidity (%) | 90% @ 50°C |
| Special Feature: Analog Output | No |
| Delay at Power-up (ms) | 100 |
| Beam Spot Size | 1.2 x 3.8 mm at 10 mm |
| Feature: Quick Disconnect | Yes |
| Application: Luminescence | No |
| Application: Registration Mark | Yes |
| Application: Color | No |
| Cable Length (m) | 0.15 |
