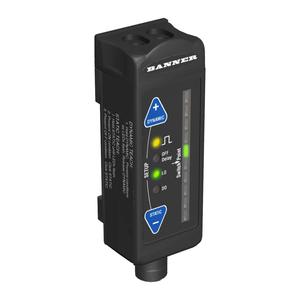

Bannerengineering R55FQ Registration Mark, Color and Luminescence Sensors
Technical Specifications of Banner Registration Mark, Color and Luminescence Sensors R55FQ:
| Connection | Integral QD |
| Power Supply/Supply Voltage | 10-30 V dc |
| NEMA / UL Type Rating | NEMA 4X |
Bannerengineering Registration Mark, Color and Luminescence Sensors R55FQ Technical Specifications
| Specification | Value |
|---|---|
| Type | R55F Series Fiber Optic Registration Mark Sensor |
| IP Rating | IP67 |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Primary Housing Material | Thermoplastic |
| NEMA / UL Type Rating | NEMA 4X |
| Adjustments | Teach Button |
| Special Feature: Remote Teach | Yes |
| Power Supply/Supply Voltage | 10-30 V dc |
| Number of Pins | 5 |
| Repeatability (Β΅s) | 50 |
| Max Op. Temperature (Β°C) | 55 |
| Min Op. Temperature (Β°C) | -10 |
| Max Op. Relative Humidity (%) | 90% @ 50Β°C |
| Delay at Power-up (ms) | 100 |
| Feature: Timing (Hold/Delay) | Yes |
| Feature: Quick Disconnect | Yes |
| Application: Registration Mark | Yes |
| Accepts Fiber Termination Type | Glass Fiber Termination |
| Power | DC |
| Housing Style | DIN Rail |
| Input Output | Discrete |
| Color LED - Amplifiers | Infrared |
| Fiber Type | Glass Only |
| Output | Bipolar (NPN & PNP) |
| Output Type (Specific) | Single Discrete |
| Intrinsically Safe | No |
| Indicator Display Type | Bargraph |
| Minimum response time (ms) | 0.05 |
| Special Feature: Bussable Power | No |
| Feature: Audible | No |
| Housing Material | Thermoplastic |
