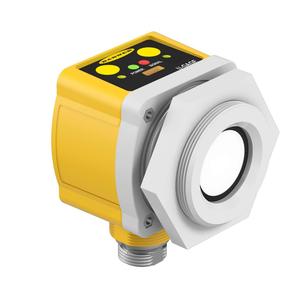

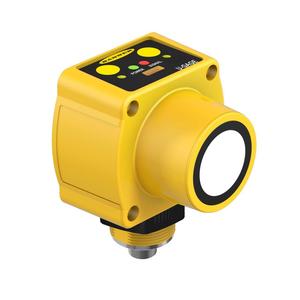

Banner QT50UVR3WQ Ultrasonic Sensor
The Banner QT50UVR3WQ Ultrasonic Sensor offers a Rectangular housing style, 8000 sensing distance, 85-264 V ac / 48-250 V dc power supply, and Integral QD connection. Manufactured by Banner under the Banner Ultrasonic Sensor category, this model belongs to the M18/Q45 Series.
| Sensing Mode (Detailed) | Time of Flight |
| Max Sensing Distance (mm) | 8000 |
| Power Supply | 85-264 V ac / 48-250 V dc |
Bannerengineering Ultrasonic Sensor QT50UVR3WQ Technical Specifications
| Specification | Value |
|---|---|
| Type | QT50U 8 m Range Chemical Resistant Ultrasonic Sensor |
| Sensing Beam | Ultrasonic |
| Power | AC/DC Universal |
| NEMA / UL Type Rating | NEMA 4X |
| IP Rating | IP67 |
| Sensing Mode (General) | Proximity |
| Sensing Mode (Detailed) | Time of Flight |
| Housing Style | Rectangular |
| Device Type | Sensor |
| Primary Housing Material | PBT |
| Input Output | E/M Relay |
| Connection | Integral QD |
| Quick Disconnect Type | 7/8 in. (Mini) |
| Max Sensing Distance (mm) | 8000 |
| Minimum Sensing Distance (mm) | 200 |
| Power Supply | 85-264 V ac / 48-250 V dc |
| Adjustments | Push Button (s) |
| Number of Pins | 5 |
| Discrete (Switched) Outputs | SPDT e/m Relay |
| Max Operating Temperature (Β°C) | 70 |
| Min Operating Temperature (Β°C) | -20 |
| Minimum Response Time (ms) | 100 |
| Ultrasonic Frequency (kHz) | 75 |
| Feature: Remote Teach | Yes |
| Feature: Clear Object Detection | Yes |
| Feature: Quick Disconnect | Yes |
| Application: Ultrasonic | Yes |
