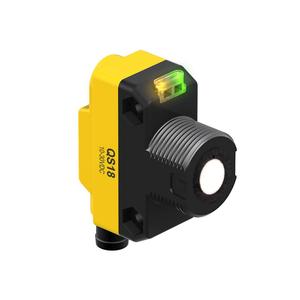

Banner QS18UNAQ7 Ultrasonic Sensor
The Banner QS18UNAQ7 Ultrasonic Sensor offers a Rectangular w/ Threaded Mount housing style, 500 sensing distance, 12-30 V dc power supply, and Integral QD connection. Manufactured by Banner under the Banner Ultrasonic Sensor category, this model belongs to the M18/Q45 Series.
| Sensing Mode (Detailed) | Time of Flight |
| Max Sensing Distance (mm) | 500 |
| Power Supply | 12-30 V dc |
Bannerengineering Ultrasonic Sensor QS18UNAQ7 Technical Specifications
| Specification | Value |
|---|---|
| Type | QS18U Series Compact High Speed Ultrasonic Sensor |
| Sensing Beam | Ultrasonic |
| Power | DC |
| NEMA / UL Type Rating | NEMA 4X |
| IP Rating | IP67 |
| Sensing Mode (General) | Proximity |
| Sensing Mode (Detailed) | Time of Flight |
| Housing Style | Rectangular w/ Threaded Mount |
| Device Type | Sensor |
| Primary Housing Material | ABS |
| Input Output | Discrete |
| Connection | Integral QD |
| Quick Disconnect Type | M8 |
| Max Sensing Distance (mm) | 500 |
| Minimum Sensing Distance (mm) | 50 |
| Power Supply | 12-30 V dc |
| Adjustments | Teach Button |
| Number of Pins | 4 |
| Discrete (Switched) Outputs | 1 NPN |
| Max Operating Temperature (°C) | 60 |
| Min Operating Temperature (°C) | -20 |
| Minimum Response Time (ms) | 15 |
| Barrel Thread | M18 |
| Ultrasonic Frequency (kHz) | 300 |
| Feature: Remote Teach | Yes |
| Feature: Clear Object Detection | Yes |
| Feature: Quick Disconnect | Yes |
| Application: Ultrasonic | Yes |
