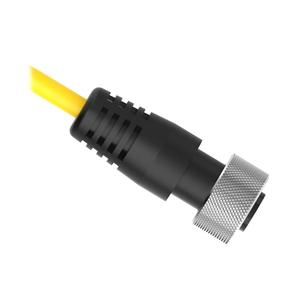

Banner QDC-515C Cordset
The Banner QDC-515C Cordset offers a Single Ended, 1" connection, 75 V ac/dc rating, and Shield - Tied to Pin. Manufactured by Banner under the Banner Cordset category.
| Brand | Banner |
| Product Type | Cordsets |
| Model Number | QDC-515C |
Banner QDC-515C Cordset – Technical Specifications
| Specification | Value |
|---|---|
| IP Rating | IP67 |
| Cable Jacket Color | Yellow |
| Cable Jacket Material | PVC |
| Coupling Nut Material | Nickel Plated Brass |
| Connector 1 Gender | Female |
| Connector 1 Orientation | Straight |
| Cordset Length (m) | 4.57 |
| Outside Cable Diameter (mm) | 6.9 |
| Connector 1 Number of Contacts | 5 |
| Number of Ends | Single Ended |
| Connector 2 Type | Flying Leads |
| Connector 1 Type | 1" |
| Voltage Rating (V) | 75 V ac/dc |
| Minimum Temp. (Celsius) | -40 |
| Trunk Length (m) | No Trunk |
| Shield/No Shield | Shield - Tied to Pin |
| Overmold Material and Color | PVC Black |
| Current Rating (A) | 2 |
| Maximum Temp. (Celsius) | 70 |
| Cordset Length Range (m) | 2.00-4.99 |
