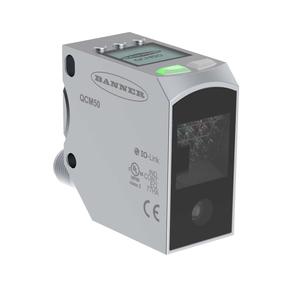

Bannerengineering QCM50-K5D40-Q8-8 Registration Mark, Color and Luminescence Sensors
Technical Specifications of Banner Registration Mark, Color and Luminescence Sensors QCM50-K5D40-Q8-8:
| Connection | Integral QD |
| Max Sensing Range (mm) | 60 |
| Power Supply/Supply Voltage | 18-30 V dc |
| NEMA / UL Type Rating | NEMA 4X |
Bannerengineering Registration Mark, Color and Luminescence Sensors QCM50-K5D40-Q8-8 Technical Specifications
| Specification | Value |
|---|---|
| Type | QCM50 Color Sensor |
| IP Rating | IP67, IP69K |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Primary Housing Material | Zinc Die-Cast, Matte Chrome Plating |
| NEMA / UL Type Rating | NEMA 4X |
| Adjustments | Teach Button |
| Sensing Beam | Visible White LED |
| Outputs | 1 PNP/NPN with IO-link, 4 PNP/NPN Auto Detect |
| Special Feature: Remote Teach | No |
| Sensing Beam Wavelength | Broad Spectrum White |
| Max Sensing Range (mm) | 60 |
| Power Supply/Supply Voltage | 18-30 V dc |
| Number of Pins | 8 |
| LED Orientation | Perpendicular to sensor length |
| Indicator | LCD Display; LED(s) |
| Operation | NO/NC |
| Output response time (ms) | 33 to 0.33 |
| Repeatability (ยตs) | 180 |
| Lens Material | PMMA |
| Max Op. Temperature (ยฐC) | 55 |
| Min Op. Temperature (ยฐC) | -20 |
| Max Op. Relative Humidity (%) | 95% @ 55ยฐC |
| Special Feature: Analog Output | No |
| Delay at Power-up (ms) | 150 |
| Beam Spot Size | 6 x 6 mm at 25 mm |
| Number of Stored Colors | 12 |
| SF-Multifunction Input/Output | Yes |
| SF-Sensing Specialty | Small Spot Size |
| Feature: Timing (Hold/Delay) | Yes |
| Feature: Quick Disconnect | Yes |
| Application: Luminescence | No |
| Application: Registration Mark | No |
| IO Link | Yes |
| Application: Color | Yes |
