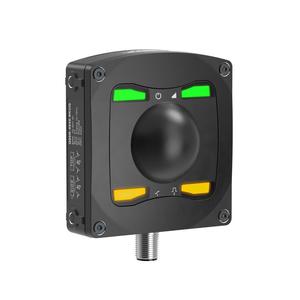

Bannerengineering Q90R-4040-6KIQ Radar Sensors
Technical Specifications of Banner Radar Sensors Q90R-4040-6KIQ:
| Sensing Mode (Detailed) | Time of Flight |
| Max Sensing Distance (mm) | 20000 |
| Power Supply | 10-30 V dc |
| Discrete (Switched) Outputs | 1 NPN/PNP Configurable |
Bannerengineering Radar Sensors Q90R-4040-6KIQ Technical Specifications
| Specification | Value |
|---|---|
| Type | Q90R Series High Power Multipurpose Radar Sensors |
| Housing Style | Flat Mount |
| Sensing Mode (General) | Proximity |
| Sensing Mode (Detailed) | Time of Flight |
| IP Rating | IP67, IP69K |
| Sensing Beam | Radar |
| Power | DC |
| Primary Housing Material | Aluminum |
| Input Output | Analog & Discrete |
| Max Sensing Distance (mm) | 20000 |
| Connection | Integral QD |
| Number of Pins | 5 |
| Quick Disconnect Type | M12 |
| Feature: Quick Disconnect | Yes |
| Device Type | Sensor |
| Power Supply | 10-30 V dc |
| Feature: Washdown Rated | Yes |
| Minimum Sensing Distance (mm) | 150 |
| Discrete (Switched) Outputs | 1 NPN/PNP Configurable |
| Max Operating Temperature (°C) | 65 |
| Min Operating Temperature (°C) | -40 |
| Feature: Remote Teach | Yes |
| Feature: Clear Object Detection | Yes |
| Cert: Canada | Yes |
| Cert: Taiwan | Yes |
| Cert: US | Yes |
| Cert: Australia/New Zealand | Yes |
| Feature: Timing (Hold/Delay) | Yes |
| PFM Output | Yes |
| IO Link | Yes |
| Analog Output Configuration | 4-20 mA |
| Operating Frequency | 60 GHz |
| Radar Beam Pattern (H x V °) | 40 x 40 |
| Cert: European | Yes |
| FOV Type | Fixed |
