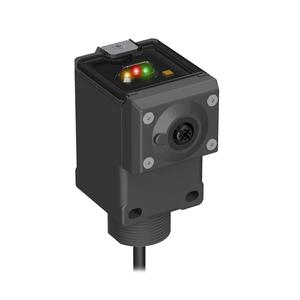

Banner Q45UR3BA63CQ6KQ Ultrasonic Sensor
The Banner Q45UR3BA63CQ6KQ Ultrasonic Sensor offers a Rectangular housing style, 250 sensing distance, 12-24 V dc power supply, and Integral QD connection. Manufactured by Banner under the Banner Ultrasonic Sensor category, this model belongs to the M18/Q45 Series.
| Sensing Mode (Detailed) | Time of Flight |
| Max Sensing Distance (mm) | 250 |
| Power Supply | 12-24 V dc |
Bannerengineering Ultrasonic Sensor Q45UR3BA63CQ6KQ Technical Specifications
| Specification | Value |
|---|---|
| Type | Q45UR Series Remote Transducer Ultrasonic Sensor |
| Sensing Beam | Ultrasonic |
| Power | DC |
| NEMA / UL Type Rating | NEMA 4X |
| IP Rating | IP67 |
| Sensing Mode (General) | Proximity |
| Sensing Mode (Detailed) | Time of Flight |
| Housing Style | Rectangular |
| Device Type | Kit |
| Primary Housing Material | Thermoplastic Polyester |
| Input Output | Discrete |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Max Sensing Distance (mm) | 250 |
| Minimum Sensing Distance (mm) | 50 |
| Power Supply | 12-24 V dc |
| Adjustments | Teach Button; DIP Switches |
| Number of Pins | 5 |
| Discrete (Switched) Outputs | Bipolar (NPN & PNP) |
| Max Operating Temperature (Β°C) | 70 |
| Min Operating Temperature (Β°C) | -25 |
| Minimum Response Time (ms) | 40 |
| Ultrasonic Frequency (kHz) | 400 |
| Feature: Remote Teach | Yes |
| Feature: Clear Object Detection | Yes |
| Feature: Quick Disconnect | Yes |
| Application: Ultrasonic | Yes |
