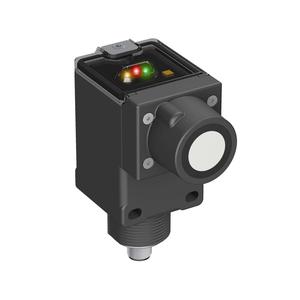

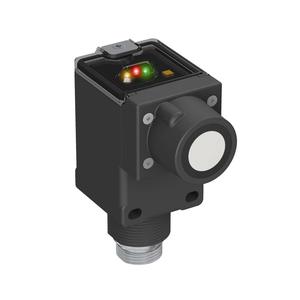

Home Brands Banner Ultrasonic Sensors Q45ULIU64BCRQ Banner Q45ULIU64BCRQ Ultrasonic Sensor The Banner Q45ULIU64BCRQ Ultrasonic Sensor offers a Rectangular housing style, 3000 sensing distance, 15-24 V dc power supply, and Integral QD connection. Manufactured by Banner under the Banner Ultrasonic Sensor category, this model belongs to the M18/Q45 Series.
Sensing Mode (Detailed) Time of Flight Max Sensing Distance (mm) 3000 Power Supply 15-24 V dc
Bannerengineering Ultrasonic Sensor Q45ULIU64BCRQ Technical Specifications Specification Value Type Q45U Series Versatile Ultrasonic Sensor Sensing Beam Ultrasonic Power DC NEMA / UL Type Rating NEMA 4X IP Rating IP67 Sensing Mode (General) Proximity Sensing Mode (Detailed) Time of Flight Housing Style Rectangular Device Type Sensor Primary Housing Material PBT Input Output Analog Connection Integral QD Quick Disconnect Type 7/8 in. (Mini) Max Sensing Distance (mm) 3000 Minimum Sensing Distance (mm) 250 Power Supply 15-24 V dc Adjustments Teach Button; DIP Switches Number of Pins 5 Max Operating Temperature (Β°C) 70 Min Operating Temperature (Β°C) -25 Minimum Response Time (ms) 80 Ultrasonic Frequency (kHz) 128 Feature: Remote Teach Yes Feature: Clear Object Detection Yes Feature: Quick Disconnect Yes Application: Ultrasonic Yes Analog Output Configuration 0-10 V dc or 4-20 mA
