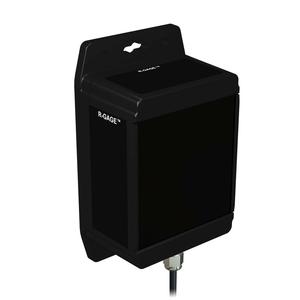

Bannerengineering Q120RA-EU-AF Radar Sensors
Technical Specifications of Banner Radar Sensors Q120RA-EU-AF:
| Sensing Mode (Detailed) | Time of Flight |
| Max Sensing Distance (mm) | 12000 |
| Power Supply | 12-30 V dc |
| Discrete (Switched) Outputs | Bipolar (NPN & PNP) |
Bannerengineering Radar Sensors Q120RA-EU-AF Technical Specifications
| Specification | Value |
|---|---|
| Type | Q120R Series Narrow Beam Radar Sensor |
| Housing Style | Rectangular |
| Sensing Mode (General) | Proximity |
| Sensing Mode (Detailed) | Time of Flight |
| IP Rating | IP67 |
| NEMA / UL Type Rating | NEMA 4X |
| Sensing Beam | Radar |
| Cable Length (m) | 2 |
| Power | DC |
| Primary Housing Material | ABS/Polycarbonate |
| Input Output | Discrete |
| Max Sensing Distance (mm) | 12000 |
| Connection | Flying Leads |
| Number of Pins | 5 |
| Adjustments | Dip Switch |
| Device Type | Sensor |
| Power Supply | 12-30 V dc |
| Minimum Sensing Distance (mm) | 2000 |
| Discrete (Switched) Outputs | Bipolar (NPN & PNP) |
| Max Operating Temperature (°C) | 65 |
| Min Operating Temperature (°C) | -40 |
| Minimum Response Time (ms) | 15 |
| Cert: China | Yes |
| Cert: Korea | Yes |
| Cert: Brazil | Yes |
| Cert: Singapore | Yes |
| Cert: Australia/New Zealand | Yes |
| Operating Frequency | 24 GHz |
| Radar Beam Pattern (H x V °) | 24 x 50 |
| Cert: Japan | Yes |
| Cert: European | Yes |
