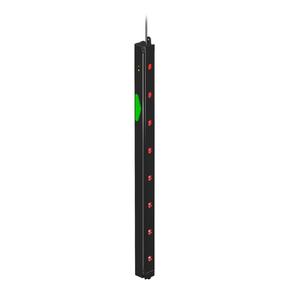

Bannerengineering PVL500N PVL Series Parts Verification Array
Technical Specifications of Banner PVL Series Parts Verification Array PVL500N:
| Connection | Cable |
Bannerengineering PVL Series Parts Verification Array PVL500N Technical Specifications
| Specification | Value |
|---|---|
| IP Rating | IP50 |
| Connection | Cable |
| Sensing Mode (Detailed) | Non-Polarized |
| Primary Housing Material | Black Anodized Aluminum |
| Array Length (mm) | 500 |
| Operation | Normally Open |
| Cable Length (m) | 2 |
| Power | DC |
| Housing Style | Flat Mount - Array |
| Feature: Audible | No |
| Number of Beams | 8 |
| Display | No |
| Sensing Mode (General) | Retroreflective |
| Actuation | Yes |
| Activation Function | Optical |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 2 |
| Product Size (mm) | Other |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Animation Option 1 | Solid On |
| Max Current Color (mA) | 220 |
| Number of Input Pins/Conductors | 5 |
| Supply Voltage | 12-30 V dc |
| Input Type | NPN |
| Max Output Response Time (ms) | 2 |
| Maximum Sensing Distance (mm) | 1500 |
| Sensing Array Length (mm) | 500 |
| Beam Spacing (mm) | 70 |
| Environmental Rating | IP50 |
| High Temperature (up to 100Β° C) | 50 |
| Button Operation | Momentary |
| Primary Window Material | Acrylic Clear |
| Sensing Resolution (mm) | 70 |
| Job Light | Green |
| Output Type | NPN |
| Color Option 2 | Red |
| Mis-Pick Light | Red |
| Animation Option 2 | Flashing Only |
| Storage Temp (Β°C) | -40 to 70 |
| Multi-Color Device | Single Color On |
