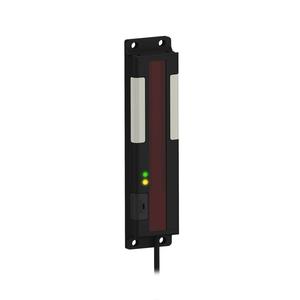

Bannerengineering PVA100P6E PVA Series Compact Part Verification Array
Technical Specifications of Banner PVA Series Compact Part Verification Array PVA100P6E:
| Connection | Cable |
| NEMA / UL Type Rating | NEMA 2 |
Bannerengineering PVA Series Compact Part Verification Array PVA100P6E Technical Specifications
| Specification | Value |
|---|---|
| IP Rating | IP62 |
| Connection | Cable |
| Sensing Mode (Detailed) | Emitter |
| Primary Housing Material | Aluminum |
| Array Length (mm) | 100 |
| NEMA / UL Type Rating | NEMA 2 |
| Cable Length (m) | 2 |
| Power | DC |
| Housing Style | Flat Mount - Array |
| Feature: Audible | No |
| Number of Beams | 5 |
| Display | No |
| Sensing Mode (General) | Opposed |
| Actuation | Yes |
| Activation Function | Optical |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 1 |
| Product Size (mm) | Other |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Animation Option 1 | Dip-Switch Controlled |
| Max Current Color (mA) | 62 |
| Number of Input Pins/Conductors | 4 |
| Supply Voltage | 12-30 V dc |
| Input Type | Bimodal (PNP/NPN) |
| Max Output Response Time (ms) | 20 |
| Maximum Sensing Distance (mm) | 2000 |
| Sensing Array Length (mm) | 100 |
| Physical Dimensions (LxWxH or DxH mm) | 137.8 x 30.0 x 15.0 |
| Beam Spacing (mm) | 25 |
| Environmental Rating | IP62 |
| High Temperature (up to 100° C) | 50 |
| Primary Housing Color | Black |
| Button Operation | Momentary |
| Primary Window Material | Acrylic Clear |
| Sensing Resolution (mm) | 35 |
| Job Light | Green |
