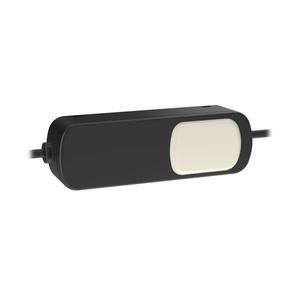

Banner PTL110S-FF200L-QP150 Touch Button
The Banner PTL110S-FF200L-QP150 Touch Button offers a Flat Mount - Flat Window housing style, Pigtail QD Connection, operation, and IP54 rating. Manufactured by Banner under the Banner Touch Button category, this model belongs to the K30 Series.
| Connection | Pigtail QD |
| Color Technology | RGB Configurable |
| Supply Voltage | 10-30 V dc |
Banner PTL110S-FF200L-QP150 Touch Button - Technical Specifications
| Specification | Value |
|---|---|
| Type | PTL110 |
| Housing Style | Flat Mount - Flat Window |
| Sensing Mode (General) | Fixed Field |
| IP Rating | IP54 |
| Cable Length (m) | 0.15 |
| Power | DC |
| Primary Housing Material | ABS |
| Connection | Pigtail QD |
| Feature: Audible | No |
| Display | No |
| Indication | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Communication Protocol |
| Number of Colors | 14 |
| Product Size (mm) | 110 |
| Color Technology | RGB Configurable |
| Color Option 1 | RGB |
| Animation Option 1 | Modbus Controlled |
| Quick Disconnect Type | M12 |
| Max Current Color (mA) | 155 |
| Number of Input Pins/Conductors | 4 |
| Supply Voltage | 10-30 V dc |
| Physical Dimensions (LxWxH or DxH mm) | 110.0 x 35.0 x 33.1 |
| Environmental Rating | IP54 |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Single Color On |
| Modbus RTU | Yes |
| Number of Beams | 1 |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| Activation Function | Optical |
| Acknowledge (Sense) Light | Programmable |
| Mis-Pick Light | Programmable |
| Pick-to-Light Function | Programmable |
| Output Type | Communication Protocol |
| Job Light | Programmable |
| Maximum Sensing Distance (mm) | 200 |
| PICK-IQ (Modbus RTU) | Yes |
