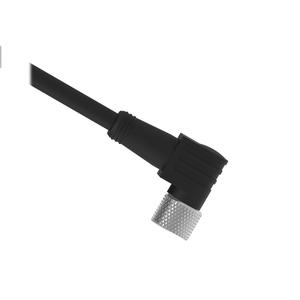

Home Brands Banner Cordsets PKW4M-2 Banner PKW4M-2 Cordset The Banner PKW4M-2 Cordset offers a Single Ended , M8 connection, 125 V ac/dc rating, and No Shield . Manufactured by Banner under the Banner Cordset category.
Brand Banner Product Type Cordsets Model Number PKW4M-2
Banner PKW4M-2 Cordset – Technical Specifications Specification Value IP Rating IP67 Cable Jacket Color Black Cable Jacket Material PVC Coupling Nut Material Nickel Plated Brass Connector 1 Gender Female Connector 1 Orientation Right Angle Cordset Length (m) 2 Outside Cable Diameter (mm) 4.3 Connector 1 Number of Contacts 4 Number of Ends Single Ended Connector 2 Type Flying Leads Connector 1 Type M8 Voltage Rating (V) 125 V ac/dc Minimum Temp. (Celsius) -40 Trunk Length (m) No Trunk Shield/No Shield No Shield Overmold Material and Color PUR Black Current Rating (A) 2 Maximum Temp. (Celsius) 70 Cordset Length Range (m) 2.00-4.99
