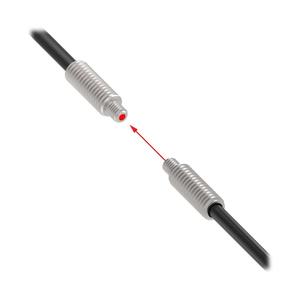

Banner PIT46UHF Fiber Optic Sensor
The Banner PIT46UHF Fiber Optic Sensor offers a Opposed sensing mode, 2 bend radius, Plastic fiber optic type, and Plastic Fiber Sensors termination type. Manufactured by Banner under the Banner Fiber Optic Sensor category, this model belongs to the PIF46U Series.
| Brand | Banner |
| Product Type | Fiber Optic Sensor |
| Model Number | PIT46UHF |
Banner PIT46UHF Fiber Optic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Round |
| Quantity Included | 2 |
| Fiber Optic Type | Plastic |
| Sensing Mode (General) | Opposed |
| Sensing Mode (Detailed) | Reflective |
| Beam Exit | In-line |
| Sensing End Material (Specific) | Nickel-Plated Brass |
| Fiber Sheathing Material (Jacket) | Polyethylene |
| Fiber Sensing End Tip | Thread |
| Fiber Length (m) | 2 |
| Fiber Sensing End Size | M2.5 |
| Sensing End Segment 1 | Thread |
| Retractile | No |
| Flex Relief | No |
| Core Diameter (mm) | 1 |
| Minimum Bend Radius (mm) | 2 |
| Termination | Free Cut |
| Max Temp ( Β°C) | 70 |
| Minimum Repeat Bending Endurance | 1000 |
| Integrated Lens | No |
| Application: Liquid Level | No |
| Termination Type | Plastic Fiber Sensors |
| Max Distance: DF-G3 (mm) | 2708 |
| Fiber Sensing End Size - Mounting Area | M4 |
| Measured Max Distance (mm) | 348 |
| Max Distance: DF-G2 (mm) | 565 |
| Tariff Fiber Meters (fbm) | 687 |
| Max Distance: DF-G1 (mm) | 348 |
| Sensing End Segment 2 | Thread |
| Max Range: DF-G3 (mm) | >1m - <=3m |
