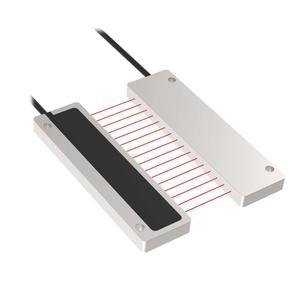

Home Brands Banner Fiber Optics PIRS1X166UMPM2.2 Banner PIRS1X166UMPM2.2 Fiber Optic Sensor The Banner PIRS1X166UMPM2.2 Fiber Optic Sensor offers a Opposed sensing mode, 5 bend radius, Plastic fiber optic type, and Plastic Fiber Sensors termination type. Manufactured by Banner under the Banner Fiber Optic Sensor category, this model belongs to the PIF46U Series.
Brand Banner Product Type Fiber Optic Sensor Model Number PIRS1X166UMPM2.2
Banner PIRS1X166UMPM2.2 Fiber Optic Sensor β Technical Specifications Specification Value Housing Style Rectangular Quantity Included 2 Fiber Optic Type Plastic Sensing Mode (General) Opposed Sensing Mode (Detailed) Array Beam Exit Right Angle Sensing End Material (Specific) Polyethylene Fiber Sheathing Material (Jacket) Polyethylene Fiber Sensing End Tip Array Fiber Length (m) 2 Fiber Sensing End Size 19.1 x 69.9 mm Sensing End Segment 1 Rectangle Retractile No Flex Relief No Core Diameter (mm) 16 x 0.3 Minimum Bend Radius (mm) 5 Termination Free Cut Max Temp ( Β°C) 70 Minimum Repeat Bending Endurance 10000 Integrated Lens No Application: Liquid Level No Termination Type Plastic Fiber Sensors Max Distance: DF-G3 (mm) 2980 Fiber Sensing End Size - Mounting Area 19.1 x 69.9 mm Measured Max Distance (mm) 384 Max Distance: DF-G2 (mm) 621 Tariff Fiber Meters (fbm) 64 Max Distance: DF-G1 (mm) 384 Sensing End Segment 2 Sideview Array Length (mm) 57 Sensing End Segment 3 Array Max Range: DF-G3 (mm) >1m - <=3m Feature: Small Object Detection Yes
