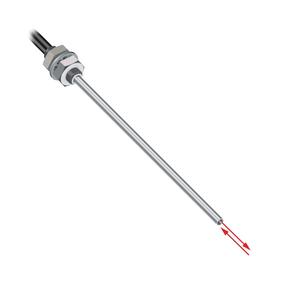

Banner PIP46U Fiber Optic Sensor
The Banner PIP46U Fiber Optic Sensor offers a Opposed sensing mode, 25 bend radius, Plastic fiber optic type, and Plastic Fiber Sensors termination type. Manufactured by Banner under the Banner Fiber Optic Sensor category, this model belongs to the PIF46U Series.
| Brand | Banner |
| Product Type | Fiber Optic Sensor |
| Model Number | PIP46U |
Banner PIP46U Fiber Optic Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Round |
| Quantity Included | 2 |
| Fiber Optic Type | Plastic |
| Sensing Mode (General) | Opposed |
| Sensing Mode (Detailed) | Reflective |
| Beam Exit | In-line |
| Sensing End Material (Specific) | Stainless Steel |
| Fiber Sheathing Material (Jacket) | Polyethylene |
| Fiber Sensing End Tip | Bendable-Probe |
| Fiber Length (m) | 2 |
| Fiber Sensing End Size | 1.5 mm |
| Sensing End Segment 1 | Thread |
| Retractile | No |
| Flex Relief | No |
| Core Diameter (mm) | 1 |
| Minimum Bend Radius (mm) | 25 |
| Termination | Free Cut |
| Max Temp ( °C) | 70 |
| Minimum Repeat Bending Endurance | 10000 |
| Integrated Lens | No |
| Application: Liquid Level | No |
| Termination Type | Plastic Fiber Sensors |
| Max Distance: DF-G3 (mm) | No Data |
| Fiber Sensing End Size - Mounting Area | M4 |
| Measured Max Distance (mm) | No Data |
| Max Distance: DF-G2 (mm) | No Data |
| Tariff Fiber Meters (fbm) | 4 |
| Max Distance: DF-G1 (mm) | No Data |
| Sensing End Segment 2 | Bendable-Probe |
