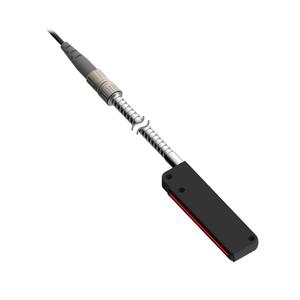

Banner PGIRS66U-40 Fiber Optic Sensor
The Banner PGIRS66U-40 Fiber Optic Sensor offers a Opposed sensing mode, 40 bend radius, Plastic fiber optic type, and Plastic Fiber Sensors termination type. Manufactured by Banner under the Banner Fiber Optic Sensor category, this model belongs to the PIF46U Series.
| Brand | Banner |
| Product Type | Fiber Optic Sensor |
| Model Number | PGIRS66U-40 |
Banner PGIRS66U-40 Fiber Optic Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Fiber Optic Type | Plastic |
| Beam Exit | Right Angle |
| Sensing Mode (General) | Opposed |
| Housing Style | Rectangular |
| Fiber Length (m) | 2 |
| Fiber Sensing End Size | 60.0 x 16.0 mm |
| Sensing End Segment 1 | Rectangle |
| Minimum Bend Radius (mm) | 40 |
| Termination | Terminated |
| Output Type (Specific) | No |
| Number of Pins | No |
| Core Diameter (mm) | 1.5 |
| Max Op. Temperature (°C | 70 |
| Termination Type | Plastic Fiber Sensors |
