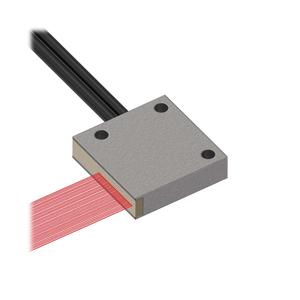

Banner PBRS1X326U Fiber Optic Sensor
The Banner PBRS1X326U Fiber Optic Sensor offers a Diffuse sensing mode, 5 bend radius, Plastic fiber optic type, and Plastic Fiber Sensors termination type. Manufactured by Banner under the Banner Fiber Optic Sensor category, this model belongs to the PIF46U Series.
| Brand | Banner |
| Product Type | Fiber Optic Sensor |
| Model Number | PBRS1X326U |
Banner PBRS1X326U Fiber Optic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Rectangular |
| Quantity Included | 1 |
| Fiber Optic Type | Plastic |
| Sensing Mode (General) | Diffuse |
| Sensing Mode (Detailed) | Array |
| Beam Exit | Right Angle |
| Sensing End Material (Specific) | Aluminum |
| Fiber Sheathing Material (Jacket) | Polyethylene |
| Fiber Sensing End Tip | Array |
| Fiber Length (m) | 2 |
| Fiber Sensing End Size | 20.1 x 20.1 mm |
| Sensing End Segment 1 | Rectangle |
| Retractile | No |
| Flex Relief | No |
| Core Diameter (mm) | 32 x 0.3 |
| Minimum Bend Radius (mm) | 5 |
| Termination | Free Cut |
| Max Temp ( Β°C) | 70 |
| Minimum Repeat Bending Endurance | 10000 |
| Integrated Lens | No |
| Application: Liquid Level | No |
| Termination Type | Plastic Fiber Sensors |
| Max Distance: DF-G3 (mm) | 917 |
| Fiber Sensing End Size - Mounting Area | 20.1 x 20.1 mm |
| Measured Max Distance (mm) | 118 |
| Max Distance: DF-G2 (mm) | 191 |
| Tariff Fiber Meters (fbm) | 64 |
| Max Distance: DF-G1 (mm) | 118 |
| Sensing End Segment 2 | Sideview |
| Array Length (mm) | 10.9 |
| Sensing End Segment 3 | Array |
| Max Range: DF-G3 (mm) | >500mm - <=1000mm |
| Feature: Small Object Detection | Yes |
