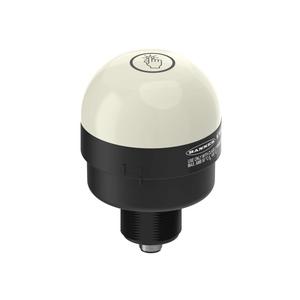

Home Brands Banner Touch Button OTBVR81QDH Banner OTBVR81QDH Touch Button The Banner OTBVR81QDH Touch Button offers a Base Mount - Saddle housing style, Integral QD Connection, Normally Open/Normally Closed operation, and IP66 rating. Manufactured by Banner under the Banner Touch Button category, this model belongs to the K30 Series.
Brand Banner Product Type Tower Button Model Number OTBVR81QDH
Banner OTBVR81QDH Touch Button - Technical Specifications Specification Value Type OTB Series Optical Touch Buttons Housing Style Base Mount - Saddle Sensing Mode (General) Single Point Optical IP Rating IP66 Power DC or AC Primary Housing Material Thermoplastic Polysulfone Connection Integral QD Operation Normally Open/Normally Closed Mounting Thread M30 x 1.5 Product Size (mm) Other Quick Disconnect Type M12 Number of Input Pins/Conductors 5 Supply Voltage 20-30 V dc/ac Input Type AC Max Input Response Time (ms) 100 Physical Dimensions (LxWxH or DxH mm) 59.9 x 43.2 x 48.0 Environmental Rating IP66 High Temperature (up to 100Β° C) 50 Min Op. Temperature (Β°C) -20 Primary Housing Color Black Output Type SPDT e/m Relay Max Output Response Time (ms) 100
