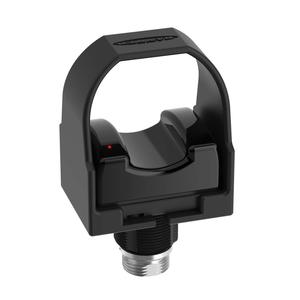

Banner OTBVR81LQD Touch Button
The Banner OTBVR81LQD Touch Button offers a Base Mount - Saddle housing style, Integral QD Connection, Normally Open/Normally Closed operation, and IP66 rating. Manufactured by Banner under the Banner Touch Button category, this model belongs to the K30 Series.
| Connection | Integral QD |
| Supply Voltage | 20-30 V dc/ac |
Banner OTBVR81LQD Touch Button - Technical Specifications
| Specification | Value |
|---|---|
| Type | OTB Series Optical Touch Buttons |
| Housing Style | Base Mount - Saddle |
| Sensing Mode (General) | Single Point Optical |
| IP Rating | IP66 |
| NEMA / UL Type Rating | NEMA 1, 3, 4, 4X, 12, 13 |
| Power | DC or AC |
| Primary Housing Material | Polycarbonate |
| Connection | Integral QD |
| Operation | Normally Open/Normally Closed |
| Feature: Audible | No |
| Display | No |
| Mounting Thread | M30 x 1.5 |
| Product Size (mm) | Other |
| Quick Disconnect Type | 7/8 in. (Mini) |
| Number of Input Pins/Conductors | 5 |
| Supply Voltage | 20-30 V dc/ac |
| Input Type | AC |
| Max Input Response Time (ms) | 100 |
| Physical Dimensions (LxWxH or DxH mm) | 59.9 x 43.2 x 48.0 |
| Environmental Rating | IP66 |
| High Temperature (up to 100Β° C) | 50 |
| Min Op. Temperature (Β°C) | -20 |
| Primary Housing Color | Red |
| Number of Beams | 1 |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50Β°C |
| Activation Function | Optical |
| Output Type | SPDT e/m Relay |
| Max Output Response Time (ms) | 100 |
| Button Operation | Momentary |
| Secondary Material | Thermoplastic |
| Non-Illuminated | Yes |
| Field Cover Color | Black |
