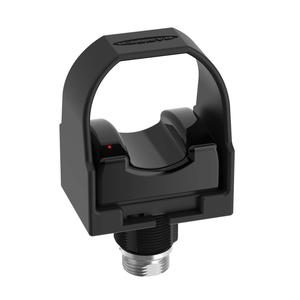

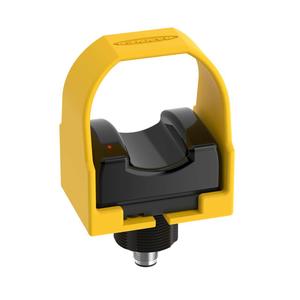

Banner OTBVP6QDH Touch Button
The Banner OTBVP6QDH Touch Button offers a Base Mount - Saddle housing style, Integral QD Connection, Normally Open/Normally Closed operation, and IP66 rating. Manufactured by Banner under the Banner Touch Button category, this model belongs to the K30 Series.
| Brand | Banner |
| Product Type | Tower Button |
| Model Number | OTBVP6QDH |
Banner OTBVP6QDH Touch Button - Technical Specifications
| Specification | Value |
|---|---|
| Type | OTB Series Optical Touch Buttons |
| Housing Style | Base Mount - Saddle |
| Sensing Mode (General) | Single Point Optical |
| IP Rating | IP66 |
| Power | DC |
| Primary Housing Material | Thermoplastic Polysulfone |
| Connection | Integral QD |
| Operation | Normally Open/Normally Closed |
| Mounting Thread | M30 x 1.5 |
| Product Size (mm) | Other |
| Quick Disconnect Type | M12 |
| Number of Input Pins/Conductors | 4 |
| Supply Voltage | 10-30 V dc |
| Input Type | PNP |
| Max Input Response Time (ms) | 100 |
| Physical Dimensions (LxWxH or DxH mm) | 59.9 x 43.2 x 48.0 |
| Environmental Rating | IP66 |
| High Temperature (up to 100Β° C) | 50 |
| Min Op. Temperature (Β°C) | -20 |
| Primary Housing Color | Black |
| Output Type | PNP |
| Max Output Response Time (ms) | 100 |
