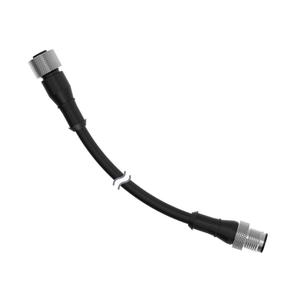

Home Brands Banner Cordset MQDEC-STP-503SS Banner MQDEC-STP-503SS Cordset The Banner MQDEC-STP-503SS Cordset offers a Double Ended , M12 connection, 250 V ac/dc rating, and Shield - Tied to Pin . Manufactured by Banner under the Banner Cordset category.
Brand Banner Product Type Cordset Model Number MQDEC-STP-503SS
Banner MQDEC-STP-503SS Cordset β Technical Specifications Specification Value IP Rating IP67 Cable Jacket Color Black Connector 1 Key Code A Cable Jacket Material PVC Coupling Nut Material Nickel Plated Brass Connector 1 Gender Female Connector 1 Orientation Straight Cordset Length (m) 0.91 Outside Cable Diameter (mm) 5.21 Connector 1 Number of Contacts 4 Number of Ends Double Ended Connector 2 Type M12 Connector 1 Type M12 Voltage Rating (V) 250 V ac/dc Minimum Temp. (Celsius) -40 Trunk Length (m) No Trunk Shield/No Shield Shield - Tied to Pin Overmold Material and Color PUR Black Current Rating (A) 4 Maximum Temp. (Celsius) 70 Cordset Length Range (m) Less than 2.00
