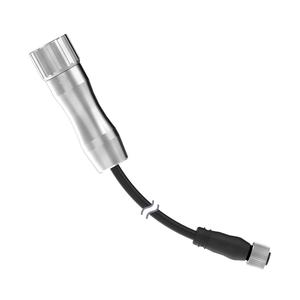

Banner MQDEC-850-12M23 Cordset
The Banner MQDEC-850-12M23 Cordset offers a Double Ended, M23 connection, 60 V ac/75 V dc rating, and No Shield. Manufactured by Banner under the Banner Cordset category.
| Brand | Banner |
| Product Type | Cordsets |
| Model Number | MQDEC-850-12M23 |
Banner MQDEC-850-12M23 Cordset – Technical Specifications
| Specification | Value |
|---|---|
| IP Rating | IP67 |
| Cable Jacket Color | Black |
| Cable Jacket Material | PUR |
| Coupling Nut Material | Nickel Plated Brass |
| Connector 1 Gender | Male |
| Connector 1 Orientation | Straight |
| Cordset Length (m) | 15 |
| Outside Cable Diameter (mm) | 9.7 |
| Connector 1 Number of Contacts | 12 |
| Number of Ends | Double Ended |
| Connector 2 Type | M12 |
| Connector 1 Type | M23 |
| Voltage Rating (V) | 60 V ac/75 V dc |
| Minimum Temp. (Celsius) | -40 |
| Trunk Length (m) | No Trunk |
| Shield/No Shield | No Shield |
| Overmold Material and Color | PUR Black |
| Current Rating (A) | 2 |
| Maximum Temp. (Celsius) | 70 |
| Cordset Length Range (m) | 10.00-19.99 |
| Connector 2 Number of Contacts | 8 |
| Connector 2 Gender | Female |
| Connector 2 Orientation | Straight |
| Connector 2 Key Code | A |
| Oil/Grease Resistant | Yes |
