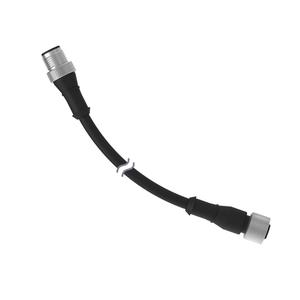

Banner MQDEC-409SR-PUR Cordset
The Banner MQDEC-409SR-PUR Cordset offers a Double Ended, M12 connection, 250 V ac/dc rating, and No Shield. Manufactured by Banner under the Banner Cordset category.
| Brand | Banner |
| Product Type | Cordsets |
| Model Number | MQDEC-409SR-PUR |
Banner MQDEC-409SR-PUR Cordset – Technical Specifications
| Specification | Value |
|---|---|
| IP Rating | IP67 |
| Cable Jacket Color | Black |
| Connector 1 Key Code | A |
| Cable Jacket Material | PUR |
| Coupling Nut Material | Nickel Plated Brass |
| Connector 1 Gender | Male |
| Connector 1 Orientation | Straight |
| Cordset Length (m) | 3 |
| Outside Cable Diameter (mm) | 4.06 |
| Connector 1 Number of Contacts | 4 |
| Number of Ends | Double Ended |
| Connector 2 Type | M12 |
| Connector 1 Type | M12 |
| Voltage Rating (V) | 250 V ac/dc |
| Minimum Temp. (Celsius) | -40 |
| Trunk Length (m) | No Trunk |
| Shield/No Shield | No Shield |
| Overmold Material and Color | PUR Black |
| Current Rating (A) | 4 |
| Maximum Temp. (Celsius) | 70 |
| Cordset Length Range (m) | 2.00-4.99 |
| Connector 2 Number of Contacts | 4 |
| Connector 2 Gender | Female |
| Connector 2 Orientation | Right Angle |
| Connector 2 Key Code | A |
| Oil/Grease Resistant | Yes |
