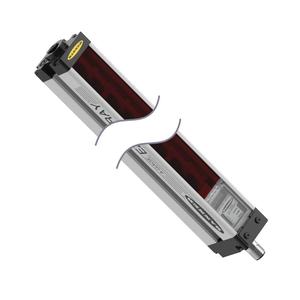

Bannerengineering MAE4816Q: MINI-ARRAY Two-Piece Measuring Light Curtain
Technical Specifications of Banner MINI-ARRAY Two-Piece Measuring Light Curtain MAE4816Q:
| Sensing Mode (Detailed) | Emitter |
| Power Supply | 16-30 V dc |
Bannerengineering MINI-ARRAY Two-Piece Measuring Light Curtain MAE4816Q Technical Specifications
| Specification | Value |
|---|---|
| Sensing Mode (Detailed) | Emitter |
| Primary Housing Material | Aluminum |
| Housing Length (mm) | 1298 |
| Device Type | Two-Piece |
| Beam Spacing | 19 mm |
| Power Supply | 16-30 V dc |
| Emitter/Receiver Range (m) | 0.9 - 13.5 |
| Max Relative Humidity | 95% |
| Minimum Object Sensitivity (mm) | 25.4-38.1 |
| Number of Beams | 64 |
| Min Temp (°C) | -40 |
| Max Temp (°C) | 70 |
| Array Length (mm) | 1210 |
