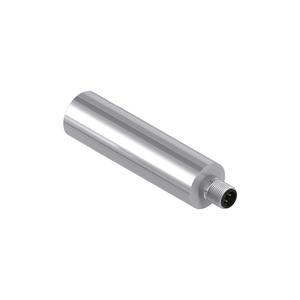

Banner M25UEQ8 Ultrasonic Sensor
The Banner M25UEQ8 Ultrasonic Sensor offers a Barrel housing style, 500 sensing distance, 10-30 V dc power supply, and Integral QD connection. Manufactured by Banner under the Banner Ultrasonic Sensor category, this model belongs to the M18/Q45 Series.
| Sensing Mode (Detailed) | Emitter |
| Max Sensing Distance (mm) | 500 |
| Power Supply | 10-30 V dc |
Bannerengineering Ultrasonic Sensor M25UEQ8 Technical Specifications
| Specification | Value |
|---|---|
| Type | M25U Series Stainless Steel IP69K Ultrasonic Sensor |
| Sensing Beam | Ultrasonic |
| Power | DC |
| NEMA / UL Type Rating | NEMA 4X |
| IP Rating | IP67, IP69K |
| Sensing Mode (General) | Opposed |
| Sensing Mode (Detailed) | Emitter |
| Housing Style | Barrel |
| Device Type | Sensor |
| Primary Housing Material | Stainless Steel |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Max Sensing Distance (mm) | 500 |
| Power Supply | 10-30 V dc |
| Number of Pins | 4 |
| Max Operating Temperature (Β°C) | 70 |
| Min Operating Temperature (Β°C) | -20 |
| Minimum Response Time (ms) | 3 |
| Barrel Thread | M25 |
| Ultrasonic Frequency (kHz) | 140 |
| Feature: Clear Object Detection | Yes |
| Feature: Chemical Resistant | Yes |
| Feature: Quick Disconnect | Yes |
| Application: Ultrasonic | Yes |
| Feature: Washdown Rated | Yes |
| Feature: Ecolab Certified | Yes |
