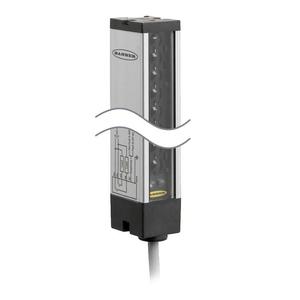

Bannerengineering LX33RQ LX Series Small and Flat Object Detection
Technical Specifications of Banner LX Series Small and Flat Object Detection LX33RQ:
| Connection | Pigtail QD |
| Max Sensing Range (mm) | 2000 |
| Power Supply/Supply Voltage | 10-30 V dc |
| NEMA / UL Type Rating | NEMA 4X |
Bannerengineering LX Series Small and Flat Object Detection LX33RQ Technical Specifications
| Specification | Value |
|---|---|
| IP Rating | IP65 |
| Connection | Pigtail QD |
| Quick Disconnect Type | M12 |
| Sensing Mode (Detailed) | Receiver |
| Primary Housing Material | Aluminum |
| NEMA / UL Type Rating | NEMA 4X |
| Outputs | Bipolar (NPN & PNP) |
| Special Feature: Remote Teach | No |
| Max Sensing Range (mm) | 2000 |
| Power Supply/Supply Voltage | 10-30 V dc |
| Number of Pins | 5 |
| Indicator | LEDs |
| Operation | Dark Operate |
| Lens Material | Acrylic |
| Max Op. Temperature (°C) | 70 |
| Min Op. Temperature (°C) | -20 |
| Max Op. Relative Humidity (%) | 90% @ 50°C |
| Feature: Quick Disconnect | Yes |
| Cable Length (m) | 0.15 |
| Housing Style | Array |
| Slot Depth/Array Length (mm) | 838 |
| Slot Overall Depth (mm) | 31.8 |
| Minimum Object Detection [mm] | 9.5 |
